Customized 12V Water Turbidity Sensor SS316 Online Turbidity Meter

Product Categories

Dissolved Oxygen Sensor [32]
Optical Dissolved Oxygen Sensor [20]
Water Dissolved Oxygen Sensor [20]
Chemical Oxygen Demand Sensor [37]
Dissolved Oxygen Meter [50]
NH4 Sensor [24]
Digital PH Sensor [13]
Electrical Conductivity Sensor [12]
Oil In Water Sensor [40]
Water Turbidity Sensor [13]
Multiparameter Water Quality Sonde [20]
Suspended Solids Sensor [14]
Blue Green Algae Sensor [23]
Oxidation Reduction Potential Sensor [13]
Water Nitrate Sensor [15]
Water Quality Analyzer [5]
Ion Sensor [2]

Xi'an Desun Uniwill Electronic Technology Co., Ltd.

Contact Now

Customized 12V Water Turbidity Sensor SS316 Online Turbidity Meter

Ask Lasest Price
Brand Name :	Desun Uniwill
Model Number :	DST420
Price :	Determined by the number of specific orders
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000

Add to Cart

Product Details
Company Profile

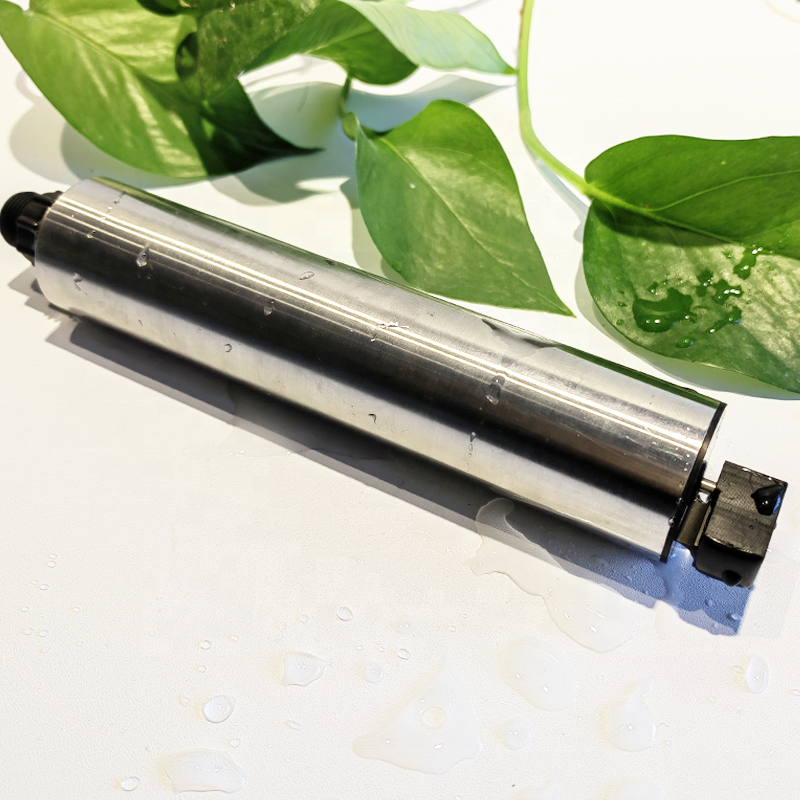

Customized 12V Water Turbidity Sensor SS316 Online Turbidity Meter

High Turbidity Data acquisition terminal online turbidity meter water quality analyzer manufacturers

Product Description

Principle

Our turbidity sensors use fiber optic technology to provide superior repeatability and stability, and are less susceptible to ambient light. The automatic cleaning brush with the sensor can effectively eliminate air bubbles and reduce the influence of contamination on the measurement. It has a longer maintenance period and maintains excellent stability for long-term online use.

Technical parameter

Product Name	Online Turbidity Sensor	Self-cleaning Turbidity Sensor
Model	DST410	DST420
Principle	90° scattered light
Measuring Range	0~4000NTU
Accuracy	±5%
Resolution	0.1NTU
Max working pressure	10 meters
Output signal	Support RS-485, MODBUS protocol
Power information	DC 6~12V, current <50mA (when not cleaned)
Size	Φ45*175.8 mm	Φ32*161mm
Housing material	SS316
Cable length	5 meters (default), can be customized
Optical window	Have
Self-cleaning system	No	Have

Install

Before installation, please check the appearance of the cables for damage, and disperse the cables.

1. When using the throw-in sensor, avoid the sensor hitting the wall or other facilities caused by water flow. If the water flow rate is too fast, the sensor must be fixed.

2. There should be no obstructions in front of the measurement. For example, fluorescence sensors should be avoided from light.

3. The water depth position where the sensor is installed should not exceed 2 meters from the horizontal, and the installation should be based on the fluctuation of the water flow. The water depth of the location should not be less than 30 cm. (Adjustable according to the measured water body)

4. The sensor should be installed in a location where there is no air bubbles to prevent air bubbles from affecting the measurement data of the sensor.

5. Do not use the sensor's own cable to hoist the sensor, and install a cable protection device to prevent excessive tension between the cable and the sensor, causing the cable to break.

6. The sensor should not be installed with the measuring side facing upwards, it can be installed vertically downwards or horizontally.

7. If you use this product in the water diversion tank, please consult the company's sales staff to confirm the specific installation requirements.

Our Service

The turbidity sensor provided by our company has a one-year warranty from the date of delivery, and the repaired or replaced product will only enjoy the remaining warranty period. After receiving the product quality problem provided by the customer, our company will confirm whether the product needs repair within 24 hours; if the repair permit is not obtained, the user must not send the product back without authorization.
The supplier guarantees that the products supplied meet the statutory quality standards, and are responsible for the quality of the products, and that the product packaging and registered trademarks are in compliance with the relevant national regulations.

FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality
monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor /
ORP / COD sensor / Blue-green algae sensor /Conductivity sensor
/TDS / TSS /MLSS,ect.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your
requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance.
Generally, we will arrange the shipment within 7 days after
received payment.
Q: How about warranty?
A: 12 months warranty.
