    Waste Water NTU Turbidity Water Sensor RS485 Optical Turbidity Meter

    Ask Lasest Price
    Brand Name : Desun Uniwill
    Model Number : DST420
    Price : Determined by the number of specific orders
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000
    • Product Details
    • Company Profile

    Waste Water NTU Turbidity Water Sensor RS485 Optical Turbidity Meter

    Turbidity Water Sensor Optical turbidity Meter RS485 Modbus Turbidity Communication Waste Water NTU

    Product Description

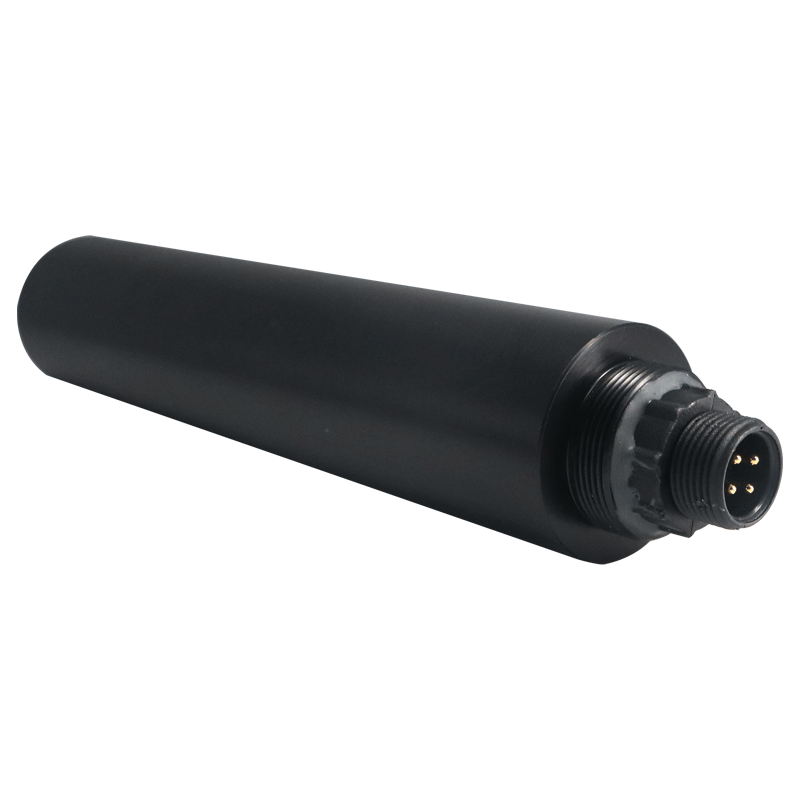

    Our turbidity sensors use fiber optic technology to provide superior repeatability and stability, and are less susceptible to ambient light. The automatic cleaning brush with the sensor can effectively eliminate air bubbles and reduce the influence of contamination on the measurement. It has a longer maintenance period and maintains excellent stability for long-term online use.

    Technical parameter

    Product
    Fiber Optic Turbidity Sensor
    Self-cleaning Fiber Optic Turbidity Sensor
    Model
    DST410
    DST420
    Principle
    90° scattered light
    Range
    0~4000NTU
    Accuracy
    ±5%
    Resolution
    0.1NTU
    Protection level
    IP68
    Output signal
    Support RS-485, MODBUS protocol
    Power supply
    DC 6~12V, current <50mA (when not cleaned)
    Size
    Φ45*175.8 mm
    Φ32*161mm
    Housing material
    POM/SS316
    Probe cable length
    5 meters (default), can be customized
    Optical window
    Have
    Self-cleaning system
    No
    Have

    Quality assurance

    The turbidity sensor provided by our company has a one-year warranty from the date of delivery, and the repaired or replaced product will only enjoy the remaining warranty period. After receiving the product quality problem provided by the customer, our company will confirm whether the product needs repair within 24 hours; if the repair permit is not obtained, the user must not send the product back without authorization.
    In principle, the quality of the products provided by our company shall be implemented in accordance with the technical standards stipulated by the purchaser. When the purchaser has no prescribed technical standards, our company will follow the current national standards or implement relevant factory standards, and ensure the stability and gradual improvement of product quality.

    Packing & Delivery
    Our Company

    Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.

    We launched a wireless water quality monitoring solution based on the current rapid development of the Internet of Things technology, combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.


    FAQ

    Q: Is your company a manufacturer??
    A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.

    Q: What parameters do you need for product selection?
    A: Application, Range, Power supply and Output signal.
    Q: How about the quality of the managements?
    A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
    Q: Can you offer OEM services?
    A: Yes,we support OEM and ODM products according to your requirements.
