Modbus Multiparameter Water Quality Sonde , Rs485 Water Treatment Sensor

Ask Lasest Price
Brand Name :	Desun Uniwill
Model Number :	DS2100
Price :	Determined by the number of specific orders
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000

Add to Cart

Product Details
Company Profile

Modbus Multiparameter Water Quality Sonde , Rs485 Water Treatment Sensor

Water treatment sensor water meter rs485 modbus multi-parameters monitor water quality detector sewage treatment sensor

Product Description

Overview

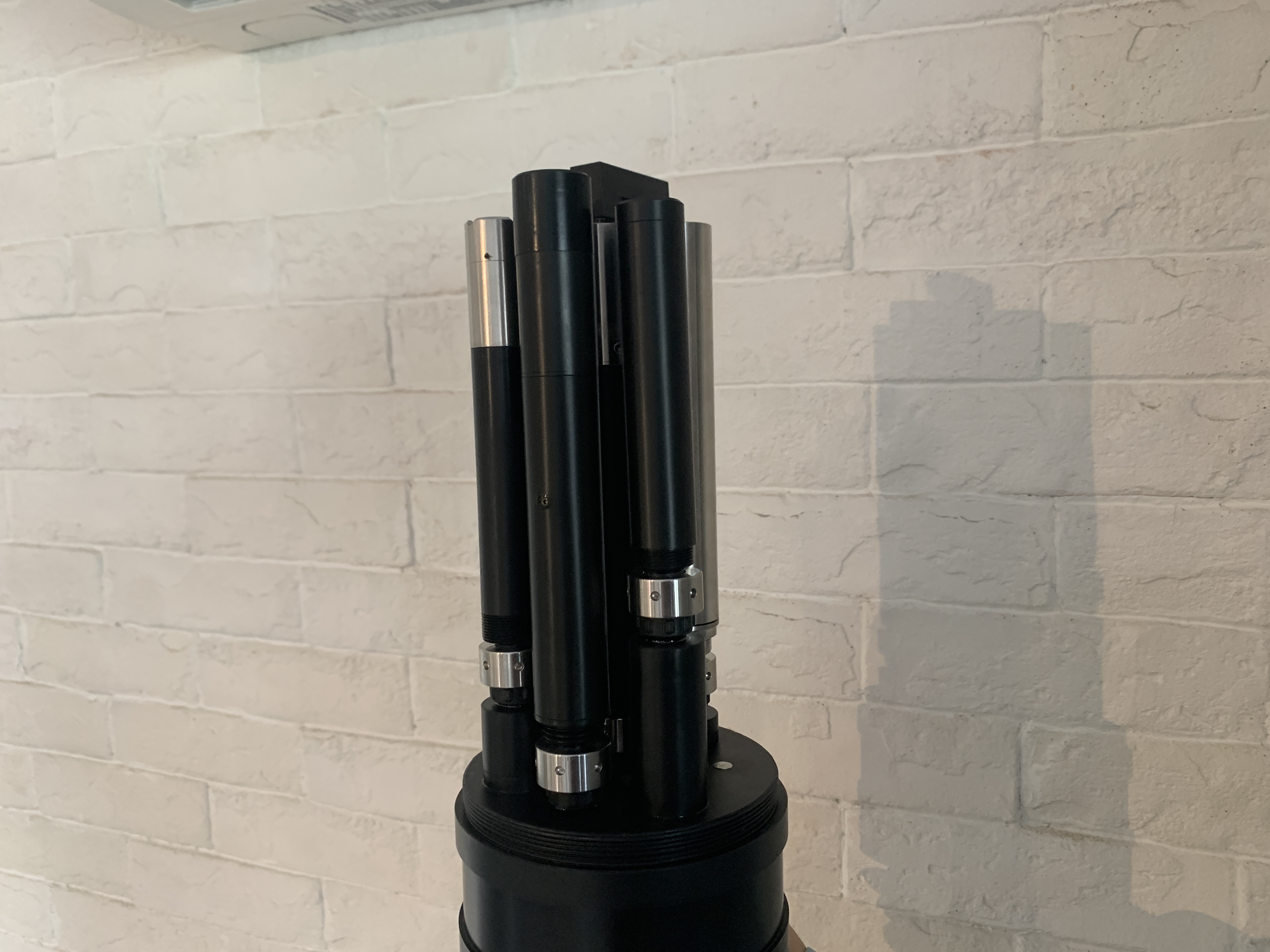

Our company has launched the latest online multi-parameter (all-in-one) water quality sensor with integrated design, which is reliable and easy to use. A maximum of 6 digital sensors can be connected at the same time. Fluorescent dissolved oxygen sensor, four- electrode conductivity sensor, turbidity sensor, digital pH electrode, blue-green algae and chlorophyll sensor can be selected at the same time. RS485 output, equipped with automatic cleaning device, greatly reducing maintenance costs, each sensor is equipped with quick-plug waterproof connector. Compared with traditional shore-type meters, installation is more convenient and can more directly reflect the real data on the spot.

Features

Digital sensor, RS485 output, support MODBUS

All calibration parameters are stored in the sensor, and each probe is equipped with a waterproof connector, which can be easily replaced.

Equipped with an automatic cleaning device, it can effectively remove the dirt on the sensor surface, prevent the growth of microorganisms, and be more accurate and less maintenance.

Optional fluorescent dissolved oxygen, four-electrode conductivity, turbidity, digital pH, blue-green algae, and chlorophyll sensors are suitable for long-term online monitoring.

Integrated design, can connect 11 probes at the same time, measure 7 parameters.

Technical parameters

Production Name	Specifications
Optical dissolved oxygen probe	Range	0-20mg/L or 0-200% saturation
	Precision	±0.3mg/L
	Resolution	0.01mg/L
Fiber turbidity probe	Range	0~1000 NTU
	Precision	<5% or 0.3NTU
	Resolution	0.1NTU
Four-electrode conductivity	Range	1uS/cm-200mS/cm	1uS/cm-100mS/cm
	Precision	1% FS
	Resolution	0-1000uS/cm: 0.1uS/cm; 1mS/cm-100mS/cm: 0.1mS/cm
Chlorophyll probe	Range	0~400 ug/L or 0~100RF
	The detection limit	0.1 μg/L
	Resolution	0.1 μg/L or 0.1% RFU
Digital pH probe	Range	0-14pH
	Precision	±0.1pH
	Resolution	0.01
Digital ORP probe	Range	-999~999mV
	Precision	±20mV
	Resolution	1mV
Oil in water water	Range	0-20ppm or 0-50ppm
	Precision	1%
	Resolution	0.1ppm
Ammonia nitrogen probe	Range	0~1000mg/L
	Precision	±10%
	Resolution	0.1mg/L
Multi-parameter sensor other information	Operating temperature	0~50°C
	Output	RS485
	Automatic cleaning brush	Yes / Optional
	powered by	12Vdc±5%
	Current	100mA
	Protection level	IP68
	Cable length	10m, 5m, 15m and 30

Maintenance schedule

DS2100 the all-in-one water quality sensor is equipped with a cleaning brush to extend maintenance intervals. However, due to the diversity of the environment, regular inspections, cleaning and calibration of the sensors are recommended.

Maintenance tasks,	Recommended maintenance frequency
Cleaning the sensor	Depending on the use environment
Calibration of sensors (if required by the competent authority)	Periodic sensor calibration

FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality
monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor /
ORP / COD sensor / Blue-green algae sensor /Conductivity sensor
/TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be
fully pre-inspection before shipping to you. We have the
certification of ISO, CE, we could send the certification test of
our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your
requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance.
Generally, we will arrange the shipment within 7 days after
received payment.
Q: How about warranty?
A: 12 months warranty
