DS2100 Multiparameter Water Quality Sonde Digital Water Quality Multiparameter

Ask Lasest Price
Brand Name :	Desun Uniwill
Model Number :	DS2100
Price :	Determined by the number of specific orders
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000

Add to Cart

Product Details
Company Profile

DS2100 Multiparameter Water Quality Sonde Digital Water Quality Multiparameter

Multi-parameter sensor can monitor COD/BOD/TOC/TSS/turbidity/EC/ORP/pH/DO/TDS/Salinity/nh4/no3 etc.

Product Description

Overview

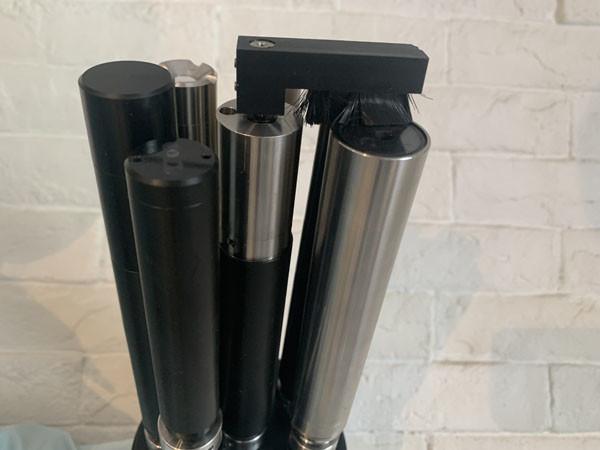

The D2100 series multi-parameter water quality sensor (seven parameters) is designed in an all-in-one configuration. Each sensor has a waterproof connector. The calibration data is stored in the sensor and can be calibrated and replaced in the field. Up to 6 Laoshan digital sensors can be connected at the same time. Optional fluorescence dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensor. Equipped with an automatic cleaning device to eliminate air bubbles and prevent microbial growth, it can easily meet the needs of various water environment monitoring such as rivers, lakes, oceans and groundwater. It has excellent reliability and can be operated in an unattended environment for several months without maintenance..

Features

² Digital sensor, RS485 output, support MODBUS

² All calibration parameters are stored in the sensor, and each probe has a waterproof connector for easy insertion and removal.

² Equipped with automatic cleaning device, it can effectively remove the surface contamination of the sensor, prevent the growth of microorganisms, more accurate and lower maintenance.

² Alternatively luminescent dissolved oxygen, four-electrode conductivity, optical turbidity, the pH digital, digital ORP, chlorophyll , oil in water and ammonia nitrogen

² Sensor for long-term online monitoring.

² The all-in-one design allows for the simultaneous connection of six probes and seven parameters.

Technical parameters

Production Name	Specifications
Optical dissolved oxygen probe	Range	0-20mg/L or 0-200% saturation
	Precision	±0.3mg/L
	Resolution	0.01mg/L
Fiber turbidity probe	Range	0~1000 NTU
	Precision	<5% or 0.3NTU
	Resolution	0.1NTU
Four-electrode conductivity	Range	1uS/cm-200mS/cm	1uS/cm-100mS/cm
	Precision	1% FS
	Resolution	0-1000uS/cm: 0.1uS/cm; 1mS/cm-100mS/cm: 0.1mS/cm
Chlorophyll probe	Range	0~400 ug/L or 0~100RF
	The detection limit	0.1 μg/L
	Resolution	0.1 μg/L or 0.1% RFU
Digital pH probe	Range	0-14pH
	Precision	±0.1pH
	Resolution	0.01
Digital ORP probe	Range	-999~999mV
	Precision	±20mV
	Resolution	1mV
Oil in water water	Range	0-20ppm or 0-50ppm
	Precision	1%
	Resolution	0.1ppm
Ammonia nitrogen probe	Range	0~1000mg/L
	Precision	±10%
	Resolution	0.1mg/L
Multi-parameter sensor other information	Operating temperature	0~50°C
	Output	RS485
	Automatic cleaning brush	Yes / Optional
	powered by	12Vdc±5%
	Current	100mA
	Protection level	IP68
	Cable length	10m, 5m, 15m and 30

Cable definition

1. Sensor Probe size 100x381 mm(Φ xL)

2. Power information

Power supply must be DC 5-12v + / - 5%

3. Cable information

4 wire AWG-24 or AWG-26 shielding wire.

1. Red wire - power supply (VCC)

2. White line - 485 data (485 A)

3. Green line -- 485 data (485 B)

4. Black wire - ground wire (GND)

5. Bare wire - shielding layer

Frequently Asked Questions

Error	Possible causes	Solutions
The operation interface cannot be connected or the measurement results are not displayed	Controller and cable connection error	Reconnect the controller and cables
	Cable failure	Please contact us
Measured values are too high, too low, or the values remain unstable	Dirt and microorganisms on the sensor	Dirt and microorganisms on the sensor

Quality assurance

Our company assures its first-hand buyers that there will not be any product defects caused by substandard materials or factory manufacturing in the 3 months after shipment. If a defect is found within the 3-month warranty period, Disen Hezhi Electronics promises to repair or replace the defective product or return the payment in addition to the first shipping and related formalities. Any product repaired or replaced during the warranty period will only enjoy the remaining warranty period of the original product.

This warranty does not apply to consumables such as consumable parts (including but not limited to lamps, pipes, etc.).

Contact Disen Hezhi Electronics or your agent to begin technical support during the warranty period.

After receiving the customer's questions about product quality, our company will confirm whether the product needs to be repaired within two weeks; products that have not been approved for repair cannot be returned.
