Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime

    Buy cheap Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime from wholesalers

    Buy cheap Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime from wholesalers
    • Buy cheap Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime from wholesalers
    • Buy cheap Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime from wholesalers

    Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime

    Ask Lasest Price
    Brand Name : Desun Uniwill
    Model Number : DS450
    Price : 360-500USD
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Circulation Type Suspended Solids Sensor 5V Online TSS Analyzer Realtime

    Online TSS analyzer for wastewater treatment plants with sensor probe for real-time online monitoring 0-10mg/L range

    Product description

    The sensor adopts 135 ° back light principle, 880nm infrared LED light source and Desun uniwill's unique adaptive software algorithm, which can effectively remove the interference of external light.

    Optical fiber structure, with excellent repeatability and stability. With the help of the automatic cleaning brush, the bubble can be eliminated, the influence of contamination on the measurement can be reduced, the maintenance cycle is longer, and the long-term online use can also maintain excellent stability.

    • Digital sensor, RS-485 output, support MODBUS
    • With automatic cleaning brush to prevent contamination and eliminate air bubbles
    • Compensate for water color to eliminate interference with color measurement
    • Fiber-optic structure, independent of ambient light
    Technical parameter
    Product
    Fiber optic TSS sensor
    Self-cleaning Fiber optic TSS sensor
    Model
    DS450
    DS451
    Principle
    90° scattered light
    Range
    0 to 1000 mg/L The range needs to be customized
    Precision
    0.1NTU
    Resolution
    <3%
    Protection level
    Ip68
    Output signal
    Support RS-485, MODBUS protocol
    Installation
    Submersible type, Circulation type
    Power supply
    DC 5~12V, current <50mA (when not cleaned)

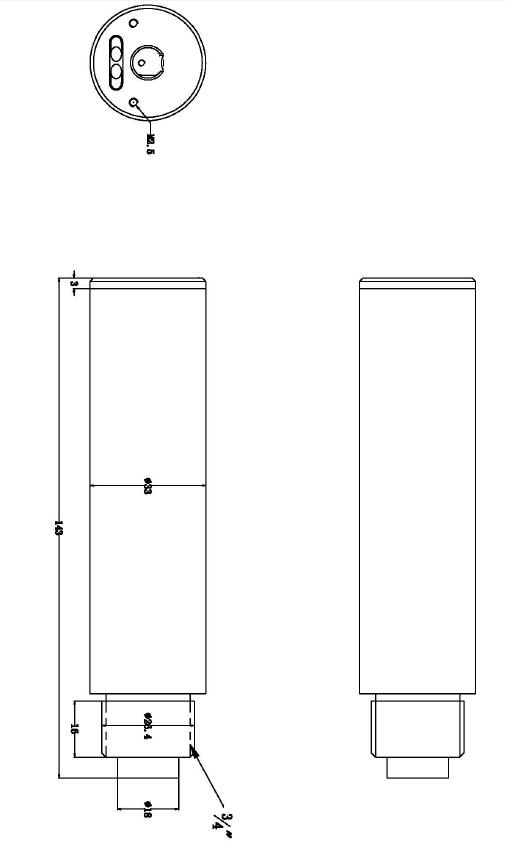

    Size
    Φ45*175.8 mm
    Probe cable length
    10 meters (default), can be customized
    Housing material
    POM, SS316
    Optical window
    Have
    Self-cleaning system
    No
    Have
    Cable information
    4 wire AWG-24 or AWG-26 shielding wire. Turbidity=5mm
    1, red line - power supply (VCC)
    2, white line - 485 data _B (485_B) 3,
    green line --- 485 data _A (485_A) 4,
    black line --- ground (GND)
    5, bare line---- shielding layer

    Company philosophy

    We are committed to the water quality monitoring industry, actively innovating and improving products, and optimizing industry application solutions. We take technology and quality as the cornerstone, honesty and service as the foundation, do a good job of water quality monitoring with our heart, and contribute to the development of the water quality monitoring industry. power. At present, the products are sold to more than 30 countries and regions overseas, and they have established their own sales network locally, cooperate with after-sales and maintenance personnel, and continue to supply water body monitoring equipment.

    In 2021, we will further increase the proportion of the domestic market on the basis of innovating high-quality products and improving technical services. Increase the after-sales maintenance force in first-tier cities to provide customers with timely and effective products and services.

    Company promise

    Disen Sensing has won unanimous praise from domestic and foreign customers with its high-quality and sincere professional pre-sales, in-sales and after-sales services. On the basis of continuously optimizing innovative products, we will strictly adhere to quality management, strictly abide by industry standards, and protect the green mountains and green waters with our partners with high-quality products to guard the blue water and blue sky.

    Services

    * Workshop and process standardization
    * Strict expert quality control
    * If the product does not satisfy, the return is also supported.
    * Quick delivery
    * Guarantee for 1 year

    FAQ

    Q: Is your company a manufacturer??
    A: Yeah, we are a manufacturer of professional online water quality monitoring products: Oil in water sensor / Dissolved oxygen sensor / pH sensor / NH4-N sensor / ORP/COD sensor / Blue-green algae sensor / Conductivity sensor / TDS / TSS / MLSS,TOC,etc.
    Q: How about the quality of the managements?
    A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.

    Q: What are your terms of payment and delivery time?
    A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
