    Customizations Industrial Water Suspended Solids Sensor Online Self Cleaning

    Ask Lasest Price
    Brand Name : Desun Uniwill
    Model Number : DS450
    Price : 300-500USD
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

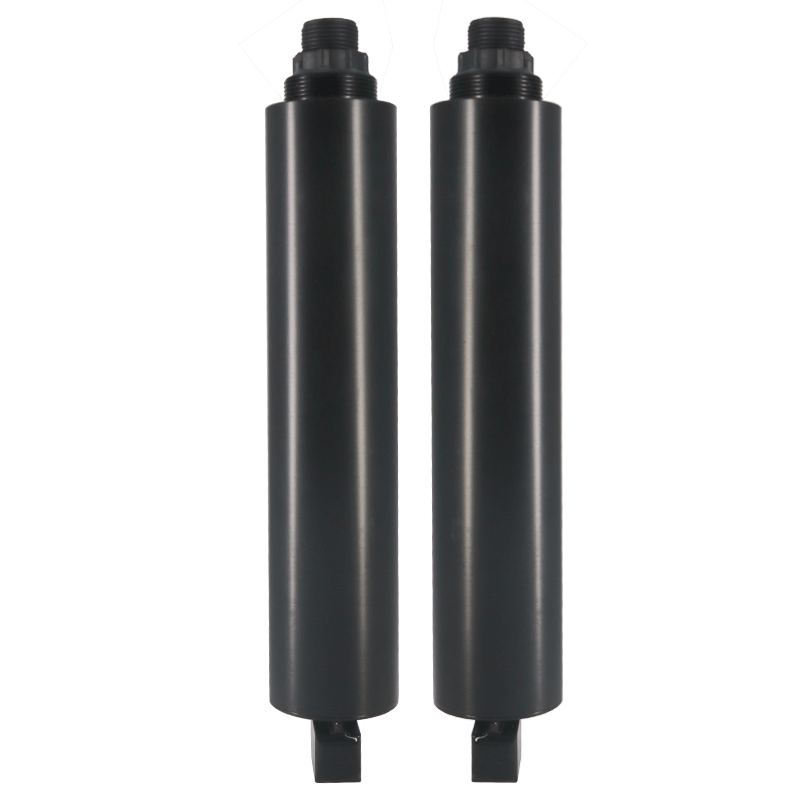

    Customizations Industrial Water Suspended Solids Sensor Online Self Cleaning

    Support for various customizations Industrial Online Free Maintenance Self Cleaning Water SS/TSS/MLSS Sensor

    Principle
    The TSS sensor adopts fiber optic technology, which provides excellent repeatability and stability and is not easily affected by ambient light. The automatic cleaning wave brush that accompanies the sensor effectively eliminates air bubbles and reduces the effect of contamination on the measurement. It has a long maintenance period and maintains excellent stability for long-term online use
    Features
    * Digital sensor, RS-485 output, MODBUS support
    * Equipped with a self-cleaning brush to prevent the influence of oil on the measurement
    * Removal of the influence of ambient light on the measurement through unique optical and electronic filtering technology
    * Independent of suspended matter in water
    * Lowest possible maintenance
    * Decrease in laboratory tests
    * Higher sensitivity and selectivity
    Technical parameter
    Product
    Fiber optic TSS sensor
    Self-cleaning Fiber optic TSS sensor
    Model
    DS450
    DS451
    Principle
    90° scattered light
    Range
    0 to 1000 mg/L The range needs to be customized
    Precision
    0.1NTU
    Resolution
    <3%
    Protection level
    Ip68
    Output signal
    Support RS-485, MODBUS protocol
    Installation
    Submersible type, Circulation type
    Power supply
    DC 5~12V, current <50mA (when not cleaned)
    Size
    Φ45*175.8 mm
    Probe cable length
    10 meters (default), can be customized
    Housing material
    POM, SS316
    Optical window
    Have
    Self-cleaning system
    No
    Have

    Company Information


    Xi'an Desun Uniwill Electronic Technology Co., Ltd. was established in March 2019,registered capital of 5 million,and is located in Xi'an High-tech Development Zone. Relying on the rich university sources in Xi'an, we are engaged in technical partnership with many universities and scientific research organizations to monitor the water environment.
    The company is a high-tech company integrates production, R&D, sales, after-sales service and engineering service.
    Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.
    We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine intelligent phones, mobile tablets and traditional measuring instruments through wire-free transmission to realize real-time dynamic water quality monitoring system, ocean environment monitoring system, fishery water monitoring system, and provide perfect solutions.
    Our Service

    * Workshop and process standardization
    * Strict expert quality control
    * If the product does not satisfy, the return is also supported.
    * Quick delivery
    * Guarantee for 1 year

    FAQ

    Q: Is your company a manufacturer??
    A: Yeah, we are a manufacturer of professional online water quality monitoring products: Oil in water sensor / Dissolved oxygen sensor / pH sensor / NH4-N sensor / ORP/COD sensor / Blue-green algae sensor / Conductivity sensor / TDS / TSS / MLSS,TOC,etc.

    Q: What parameters do I need when choosing a product?
    A: Application, Range, Power supply and Output signal.
    Q: How about the quality of the managements?
    A: We have a whole quality control system in place and our products are subjected to a full pre-test before being shipped to you. We have ISO and CE approvals and we can send you our company's approval tests.
    Q: Can you offer OEM services?
    A: Yes,we support OEM and ODM products according to your requirements.

    Q: What are your terms of payment and delivery time?
    A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
    Q: How about warranty?
    A: 12 months warranty.
