RS485 Oil In Water Analyser UV fluorescence oil in water Analyzer Oil in water monitors

Features:

-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.

Technical parameters

Product	Oil in water sensor
Model Number	DS530
Max. working pressure	1 bar
Principle	Ultraviolet fluorescence method
Response Time	＜5 sec
Measuring Range	0-50ppm/0-200ppm or 0-0.40FLU
Precision	3%
Resolution	0.01ppm
Temp range	0-50℃
Linearity	R2>0.999
Protection level	Ip68
Output signal	Support RS-485, MODBUS protocol
Assembly	Input type, thread
Power information	DC 6~12V, current <50mA (when not cleaned)
Cable length	5 meters (default), can be customized
Housing material	SS316 (customizable titanium alloy)
Self-cleaning Brush	Have
Optical window	Have

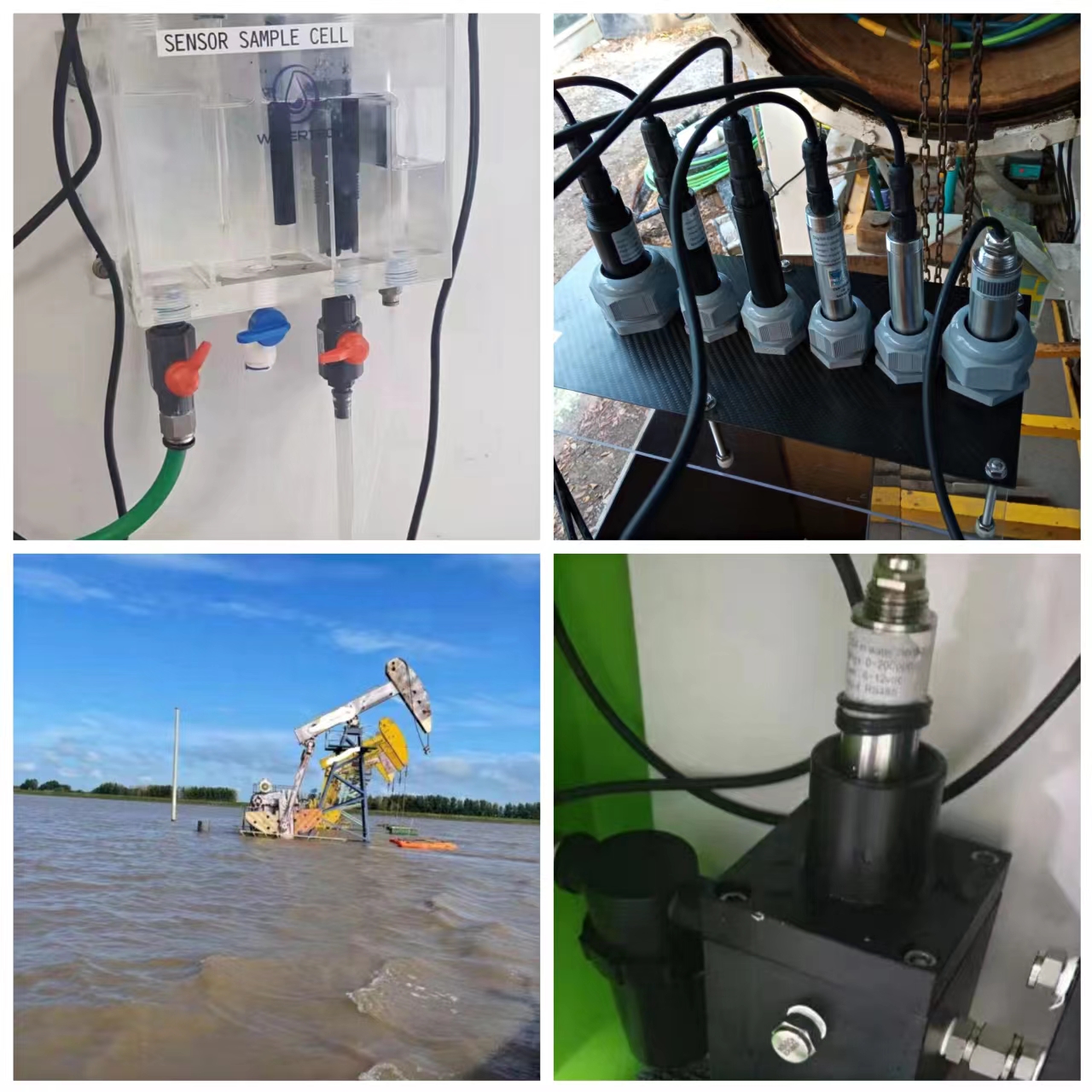

Cases:

Desun Uniwill specialized in manufacturing all kinds of electrochemical sensors and meters. We are a professional electrochemical instrumentation and electrode manufacturer combined with R&D, production, and sales. The main products include dissolved oxygen sensor, PH sensor, ORP sensor, turbidity sensor, conductivity sensor, COD sensor, ammonia nitrogen sensor, sludge concentration sensor, chlorophyll sensor, blue-green algae sensor, oil in water sensor, nitrate sensor, multi-parameter water quality sensor, etc. With an experienced and professional team, we have exported our products to more than 30 countries and regions overseas all over the world, especially in South America and southeast Asia.

Xi'an Desun Uniwill Electronic Technology Co., Ltd.is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, research and development, sales and engineering services. Relying on Xi'an's rich high-tech resources, we carry out technical cooperation with many universities and scientific research institutions, constantly break through technical barriers, improve product performance, and provide high-quality products for the water quality monitoring industry with leading technology. We have launched a wireless water quality monitoring solution based on the current rapidly developing Internet of Things technology, which combines smart terminals and traditional display units through wireless transmission to realize real-time and dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.

Desun Uniwill Electronics has won unanimous praise from domestic and foreign customers for its high-quality and sincere professional pre-sale, in-sale and after-sale services. On the basis of continuous optimization of innovative products, we will strictly control quality, strictly abide by industry standards, and work with partners to protect green mountains, green waters, and blue sky with high-quality products.
