    Aquaculture Digital Optical Dissolved Oxygen Meter Analyzer Water Quality DO Probe Sensor

    Ask Lasest Price
    Brand Name : Desun Uniwill
    Model Number : DS-380
    Certification : CE
    Price : $280.00 - $400.00/ Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 7~ 15 working days
    • Product Details
    • Company Profile

    Aquaculture Digital Optical Dissolved Oxygen Meter Analyzer Water Quality DO Probe Sensor

    Digital Optical Dissolved Oxygen Meter and Analyzer Water quality DO Meter DO Probe Sensor for Aquaculture

    Description

    The fluorescent dissolved oxygen sensor is based on the quenching principle of the specific fluorescence of the particular substance in physics. Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value. The ratio is calculated to calculate the concentration of oxygen molecules, and the final value is automatically compensated by temperature and pressure.

    do sensor
    Features
    * 0-20mg/L or 0-200% saturation
    * 0~50 °C; IP68 protection level
    * No film, no electrolyte, no polarization
    * No need to consume oxygen, no flow rate
    * Built-in temperature sensor, automatic temperature compensation
    * Free from chemical interferences such as sulfides
    * Small annual drift, fast response, and more accurate measurement
    * Free of maintenance, longer application cycle, and lower cost of use
    * Fluor cap replacement is simple
    *Support RS-485, MODBUS protocol
    fish tank dissolved oxygen sensor
    Technical parameters
    Model
    Fluorescent dissolved oxygen sensor
    Measuring Range
    0-20mg/L or 0 ≤ 200% saturation
    Response time
    5 s
    Precision
    ± 5%
    Sensor drift
    <1% per year
    Temperature range
    0~50℃
    Temperature precision
    ± 0.5℃
    Calibration method
    One or Two-point calibration
    output method
    RS-485 (Modbus/ RTU )
    Temperature sensor
    NTC
    Housing diameter
    22mm
    Housing length
    188.3
    Cable length
    5 m, in addition to the customer, 5 m, 15 m and 30 m cables.
    Power consumption
    < 0.5 W
    power supply
    DC6~12v +/-5%, current<50mA
    Protection level
    IP68
    Housing Material
    SS316/Titanium

    Company Information

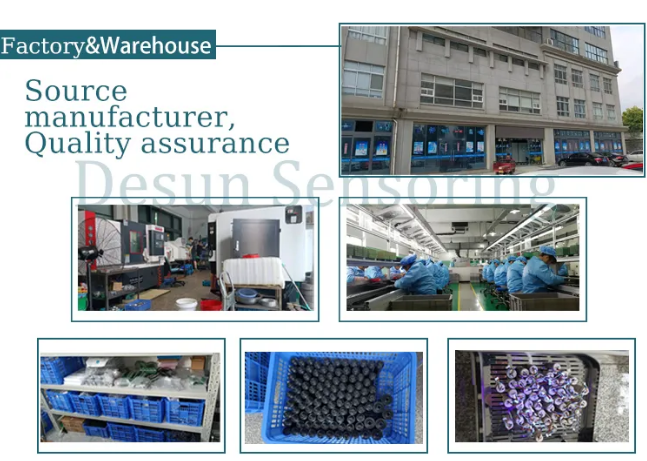

    Xi'an Desun Uniwill Electronic Technology Co., Ltd. was established in March 2019,registered capital of 5 million,and is located in Xi'an High-tech Development Zone. Relying on the abundant university resources in Xi'an, it has carried out technical cooperation with many universities and scientific research institutions, and is committed to monitoring the water environment.

    The company is a high-tech company integrating production, R&D, sales, after-sales service and engineering services.

    Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.

    We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine smart phones, tablets and traditional measuring instruments through wireless transmission to create a real-time dynamic water quality monitoring system, marine environmental monitoring system, fishery water monitoring system, and provide complete solutions.


    polarographic do sensor
